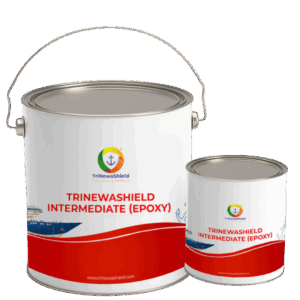

TriNewaShield Intermediate (Epoxy)
A two-pack polyamide-cured high-solid epoxy coating designed for application on structural steel as an intermediate or finish coat in aggressive coastal and industrial environments. It forms a tough, abrasion-resistant barrier with excellent resistance to moisture and corrosion. Also suitable as a maintenance primer for decks, topsides, and ballast tanks.
Product Information
Typical Uses:
- Offshore splash zone structures.
- Ballast tanks and hulls
- Topsides and superstructures
- Steel bridges and jetties
- Retrofit marine coating systems
Surface Preparation:
- Degrease and blast clean steel to Sa 2½.
- Use mechanical tools if blasting isn’t feasible.
- Wire brushing accepted to St2 or St3 level.
- Ensure all surfaces are clean and dry.
- Preparation complies with ISO 8504:2000 standards.
Application Details
- Application Methods: Airless spray, conventional spray; brush/roller for touch-ups
- Tip Size: Manual: 15–21 thou | Automatic: 21–26 thou
- Pot life: 2–4 hours
- Fluid Pressure: 1500–2500 psi
- Mixing Ratio : 4 parts base : 1 part accelerator
- Recommended DFT: 75–125 microns
- Wet Film Thickness: 121–201 microns
- Thinner: Use approved thinner (e.g., Thinner 6756)
- Dry Heat Resistance: Up to 150°C (intermittent)
